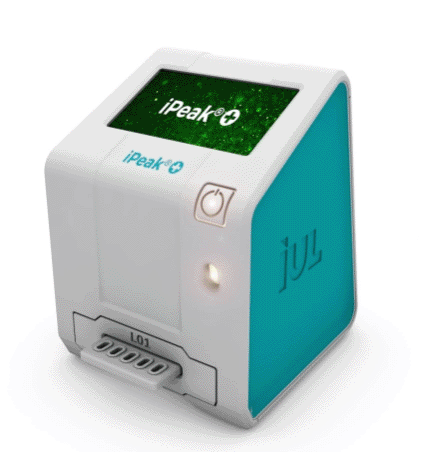

iPeak+® Reader
Lateral Flow Reader

Connect & integrate!
Transmit data to portable devices such as mobile phones or tablets, cloud, LIS, LIMS, HIS, EMR. Connect the reader to local networks, or the Internet, iPeak®+ meets the requirements of different environments of use, guaranteeing the security ofyour data. Know more about iPeak®’s connectivity here.

Utmost sensitivity
Detect and even quantify your target molecules even if they are in low oncentrations thanks to the Flash Eye Technology.
Track the sample, track the results!
Equipped with an embedded barcode reader, read barcodes, DataMatrix, or any code on virtually any medium - paper, plastic cards, mobile phones, or LCD displays.

Stand alone
Portable and lightweight, iPeak®+ is ideal for any kind of environment.

User-friendly
4.3’ capacitive and intuitive screen. lt is essentially useful for non-trained professionals.

Compliance
CE marked. IUL sets out the criteria for a quality management system certified ISO 9001 and ISO 13485:2016 Medical devices - Quality management systems.

Performance and Specifications

Internal memory	16 GB
Stored results	Results, raw, and processed images. Depending on the internal memory
Number of test lines per strip	Up to 7 lines / strip Up to 5 strips
Measurement time	15 seconds, one strip, 2 lines
Technology	Colorimetric lateral flow reader with the IUL’s Flash Eye Technology camera - based

Security & Exportation	HL7 v2.8 compliant. Connections https with SSL TLSv1 TLSv1.1 TLSv1.2 TLSv1.3. Authentication: transport level 2 with token key management. Also can export to an external SFTP server or directly from a slim USB
Sample traceability	Lectura de Datamatrix para una trazabilidad completa de la muestra
Batería	Datamatrix, QR, and barcode
Dimensions (LxWxH)	iPeak+: 150 x 140 x 185 mm
Weight	900 g /1.98 lb
Screen	Color, capacitive, 4.3’’ touchscre
